IC-9700

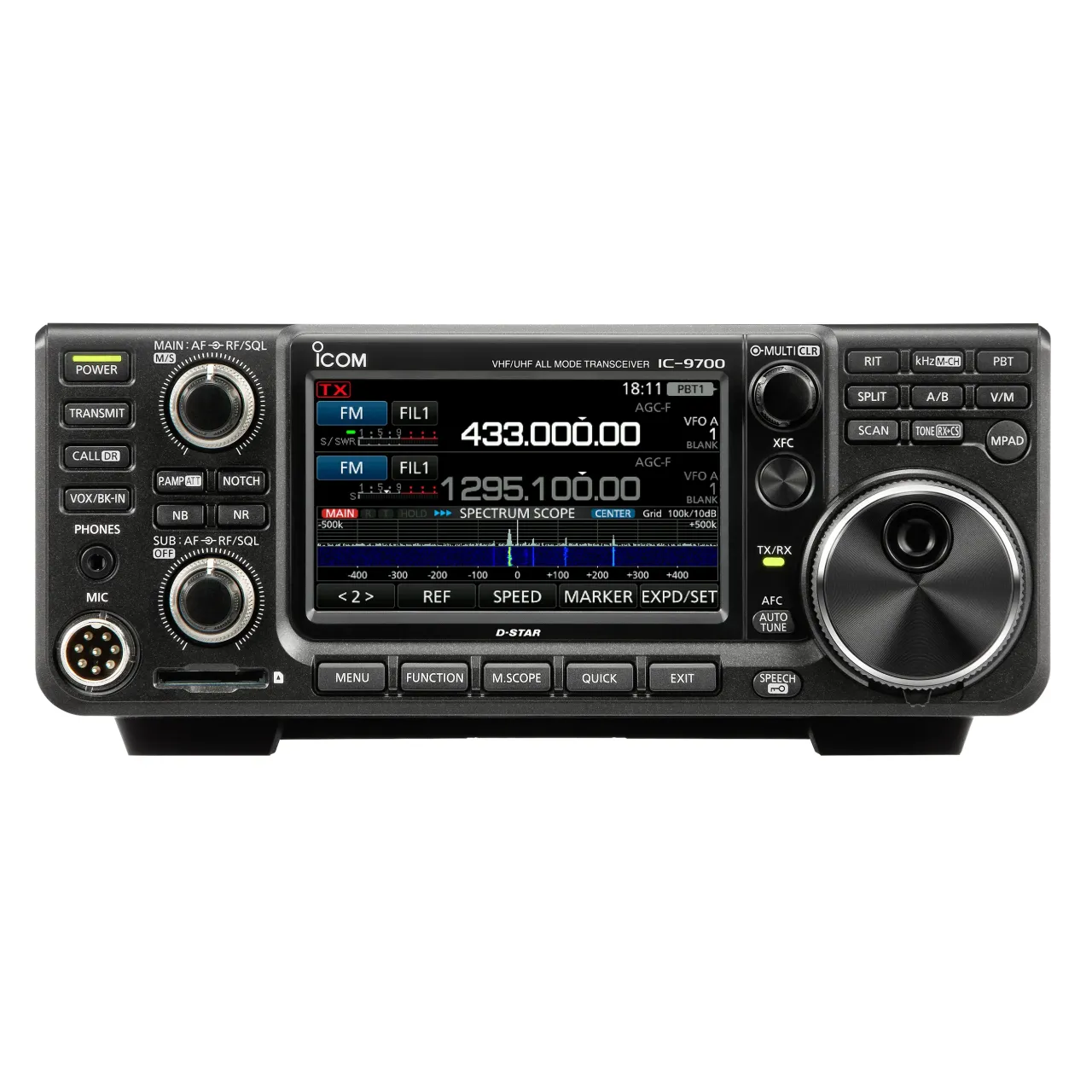

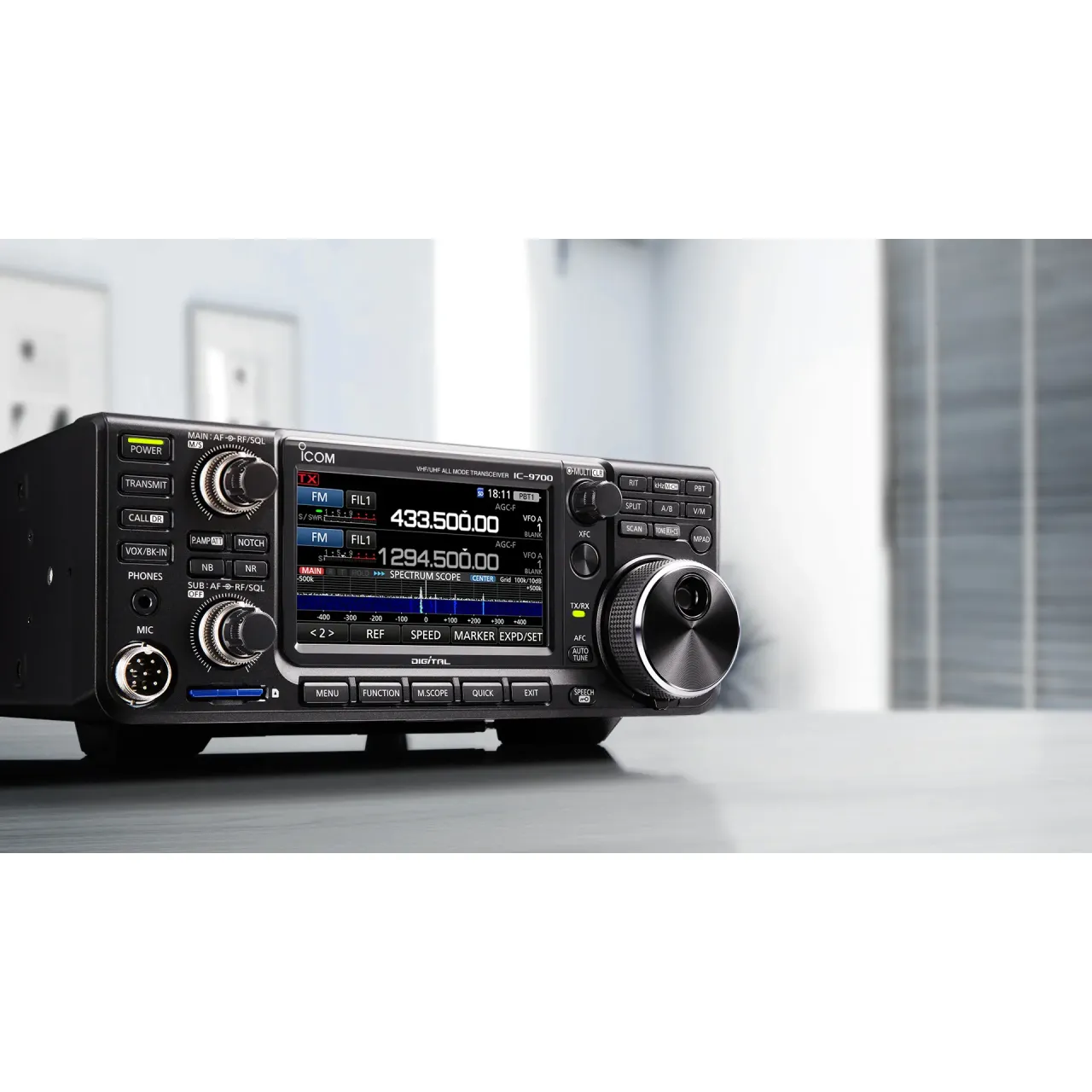

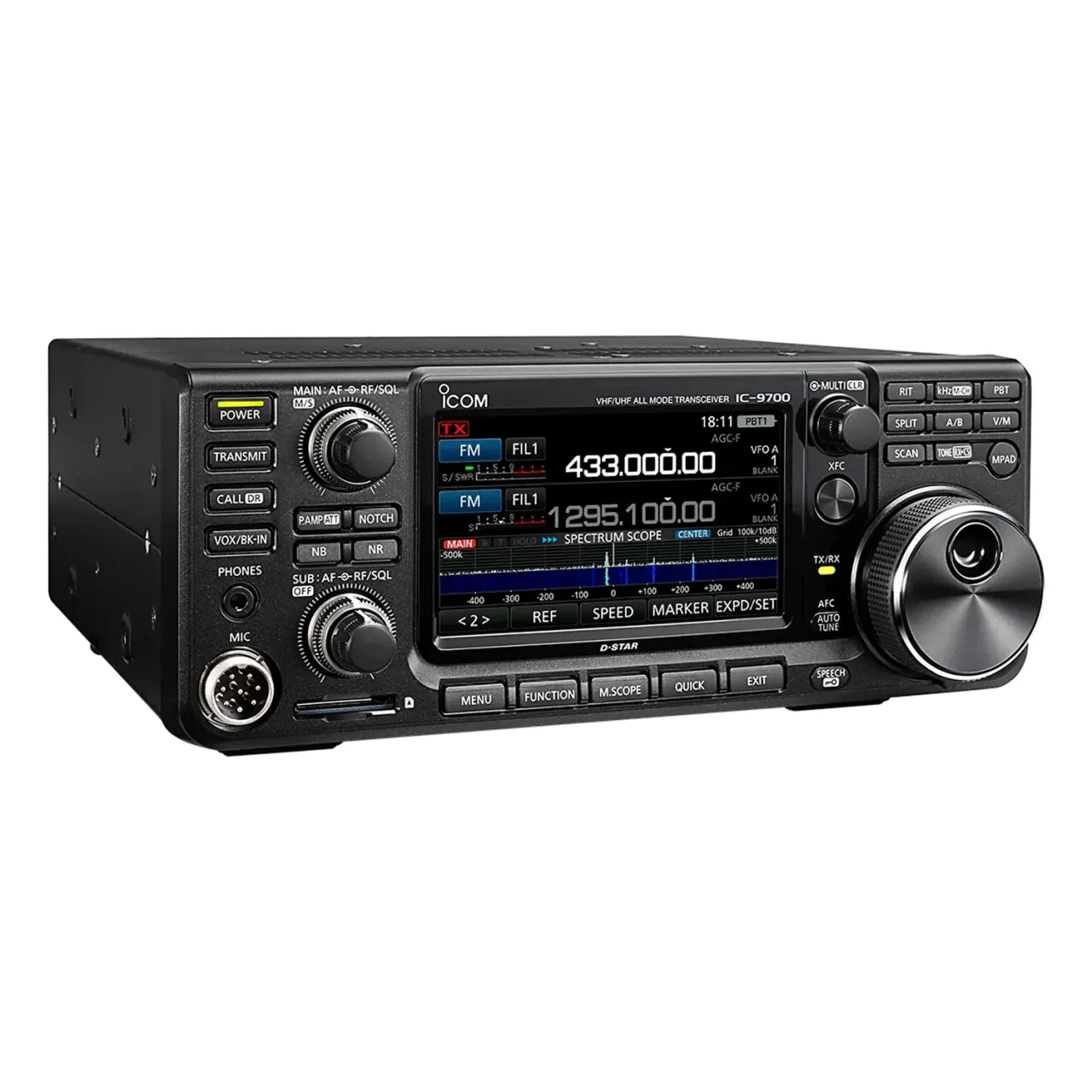

Ham digital transceiver VHF/UHF/1200MHz, tri-band transceiver (144-146MHz, 430-440MHz,1240-1300MHz), output power 100/75/10W, 2420 channels, all modes (SSB, CW, RTTY, AM/FM, DV, DD) with 4,3" touch screen color TFT LCD and keypad, spectrum scope, dualwatch operation and full-duplex operation in the satellite mode, LAN port, USB/B port, D-STAR compatible (digital clear audio and Internet capable communication), voice recording / playback function (via SD memory card). Supplied with hand microphone and DC power cable. Any modification to the equipment not carried out by the ICOM France service department of ICOM France will invalidate the manufacturer's warranty.

Cliquez pour agrandir

Les + Produits

All mode tri-band transceiver: 144, 430 and 1200 MHz including Satellite, DV and DD modes

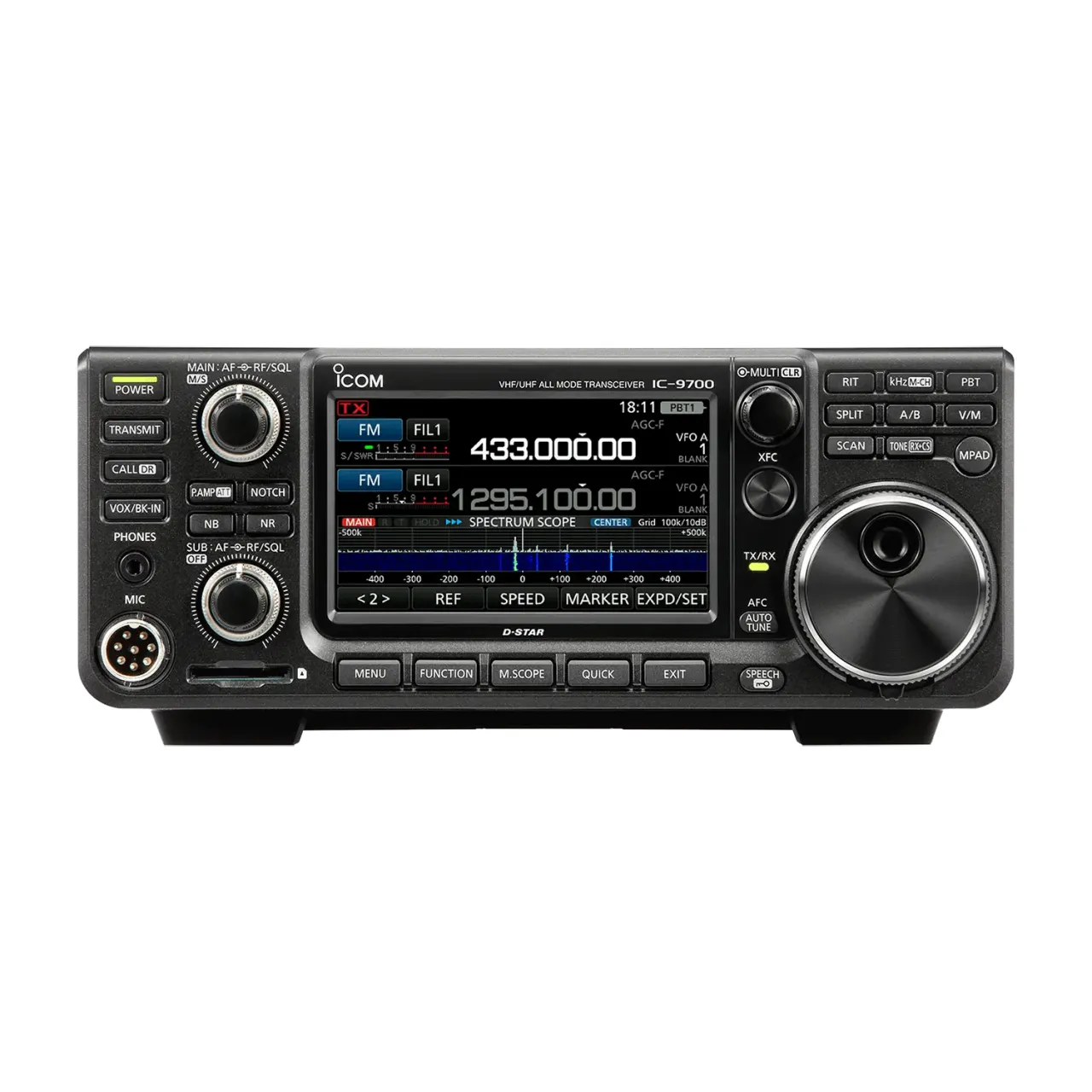

Intuitive touch screen display, real-time spectrum scope and waterfall
Full duplex to transmit on the MAIN band while receiving on the SUB band
Comprehensive menu for Satellite operation and 99 satellite memory channels
High-speed spectrum scope 128 kbps in DD mode
10 MHz reference signal input
USB type B port

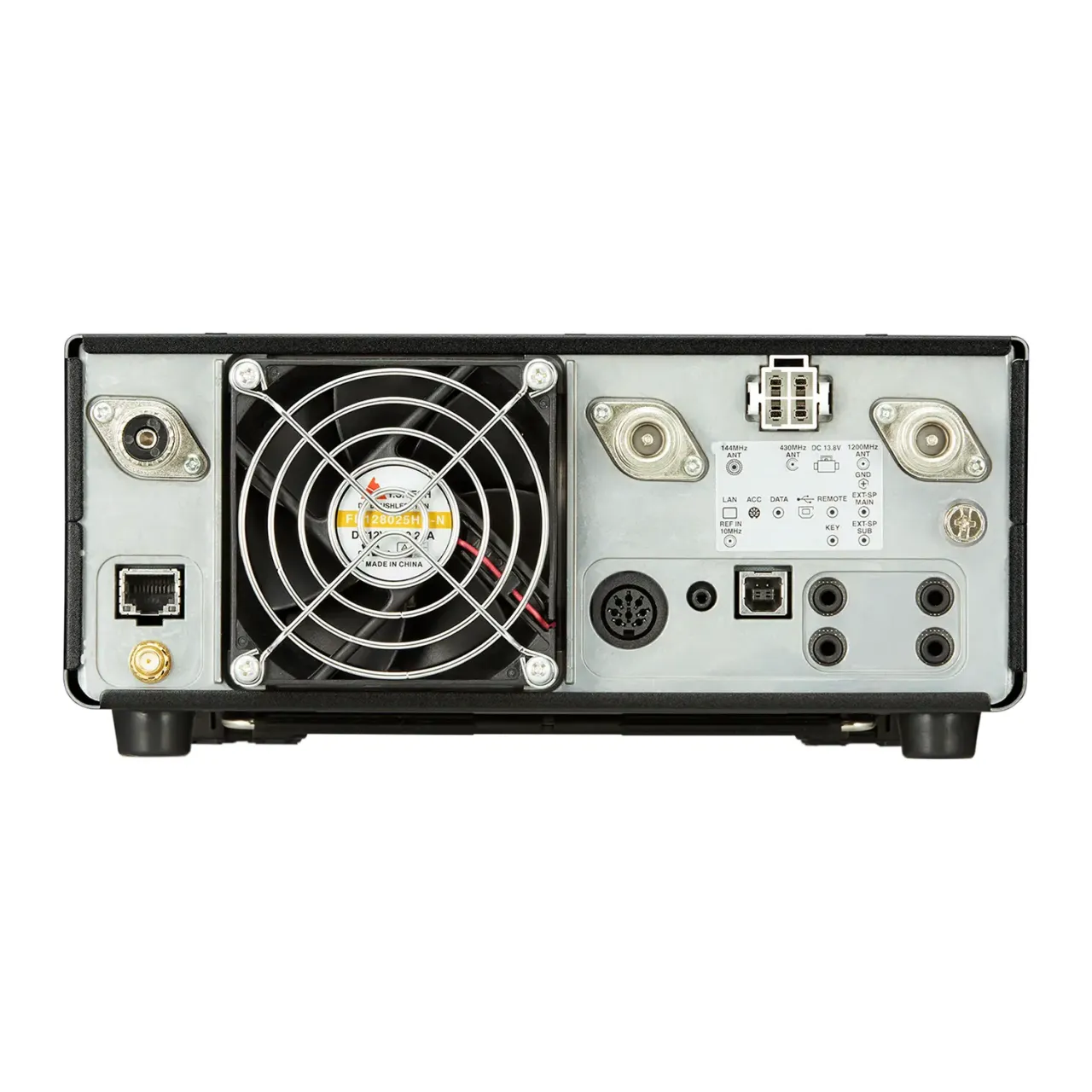

3 antenna connectors: 144, 430 and 1200 MHz
Remote control application for Android™ (RS-MS1A) and IP remote control software with RS-BA1

Demande d'informations

Commander

Antennas

AH-8000

Wideband omnidirectionnal discone antenna 100-3300MHz, 3 dBi, 200W, 936mm height, 50m/sec wind resistance. Supplied with 15m coaxial cable with type-N connector and mounting kit

Microphones

HM-219

Hand microphone 8pins

SM-30

Compact 8-pin desktop electret table microphone

SM-50

8-pin destock microphone with [UP/DOWN] switches and a low cut function

Covers, fasteners and cradles

LC-COVER9700

Black synthetic leather case, rear panel part opens to cover the radio with cable connected. Embroidery of ICOM logo in red and white and "IC-9700" in white. Designed in Japan

MB-118

Bracket

MB-123

Cords

OPC-1529R

Data cable

OPC-2350LU

Others

RC-28

USB remote encoder

Softwares

RS-MS1A

Android Remote Control Software

RS-MS3A

DV AP Terminal mode application software for Android PCs

RS-MS3W

DV AP Terminal mode application software for Windows PCs

Speakers

SP-33

5W 8 Ohms external speaker for base. match large HF transceivers, flat frequency response, wooden case, dimensions: 140 (W)× 165.5 (H)× 125.5 (D) mm

SP-35

Black external speaker 5W 4Ohms. Modern and compact designed.

SP-38

External speaker 5W, 8 Ohms

SP-41

5W external speaker 4 audio filters 8 ohms

Repeaters

ID-RP1200VD

Ham repeater 1200MHz 10W DV/DD mode switchable for D-STAR system, analog digital mixed mode, analog FM repeater function, 2U 19in rack mount. Optional LTE modem board for backhaul IP connection

ID-RP2010V

Ham VHF repeater 144-146MHz 25W DV for D-STAR system, analog digital mixed mode, analog FM repeater function, 2U 19in rack mount. Optional LTE modem board for backhaul IP connection

ID-RP4010V

Ham UHF repeater 430-440MHz 25W DV for D-STAR system, analog digital mixed mode, analog FM repeater function, 2U 19in rack mount. Optional LTE modem board for backhaul IP connection

not-D-STAR_App_ENG_QG_1-en.pdf

not-D-STAR_guide_1-en.pdf - D-STAR Updating the repeater list

not-FonctionsGatewayG3-fr.pdf

not-IC-9700_ENG_CI-V_3a-en.pdf

not-IC-9700_ENG_Info_V130_0a-en.pdf - Firmware Update Information Ver1.30
