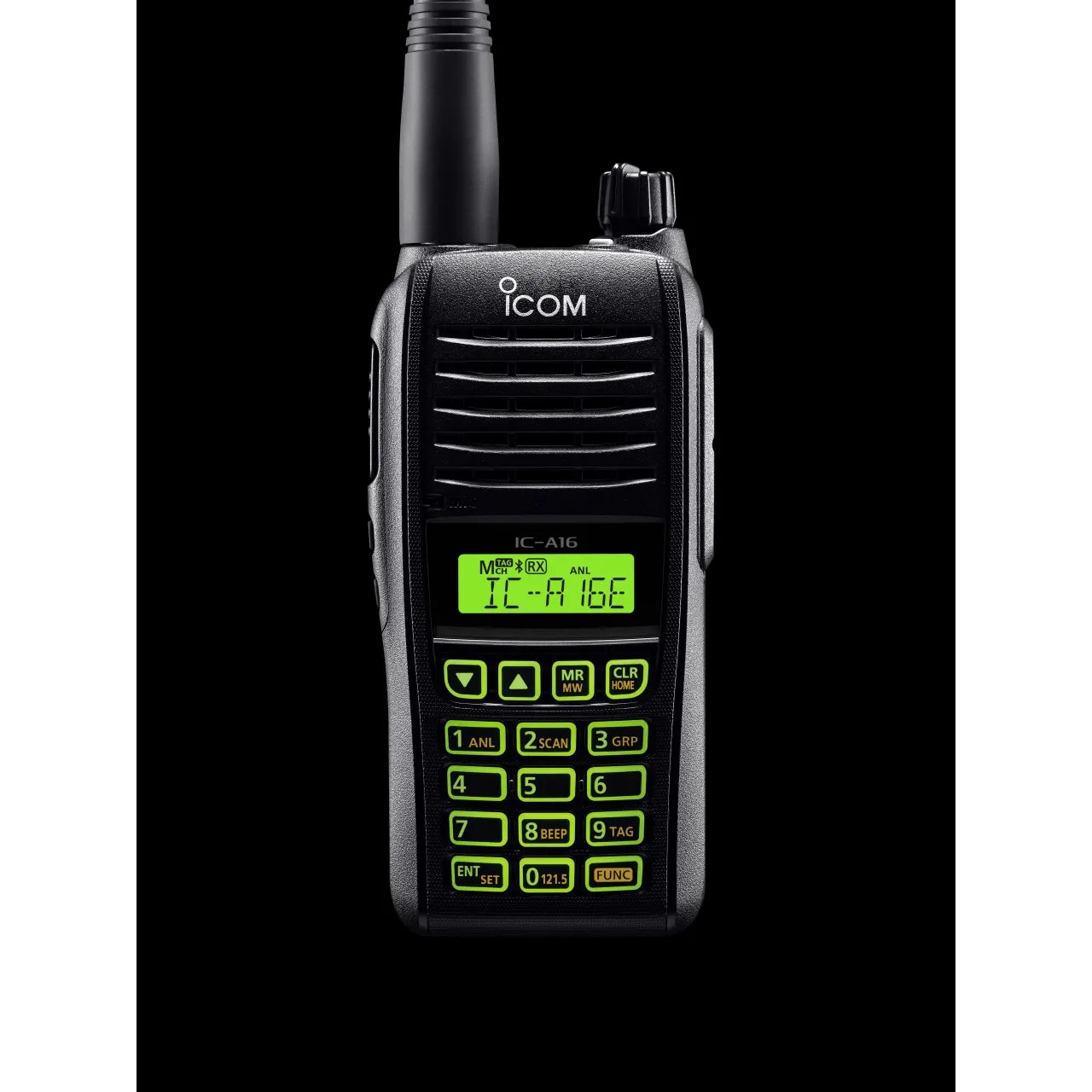

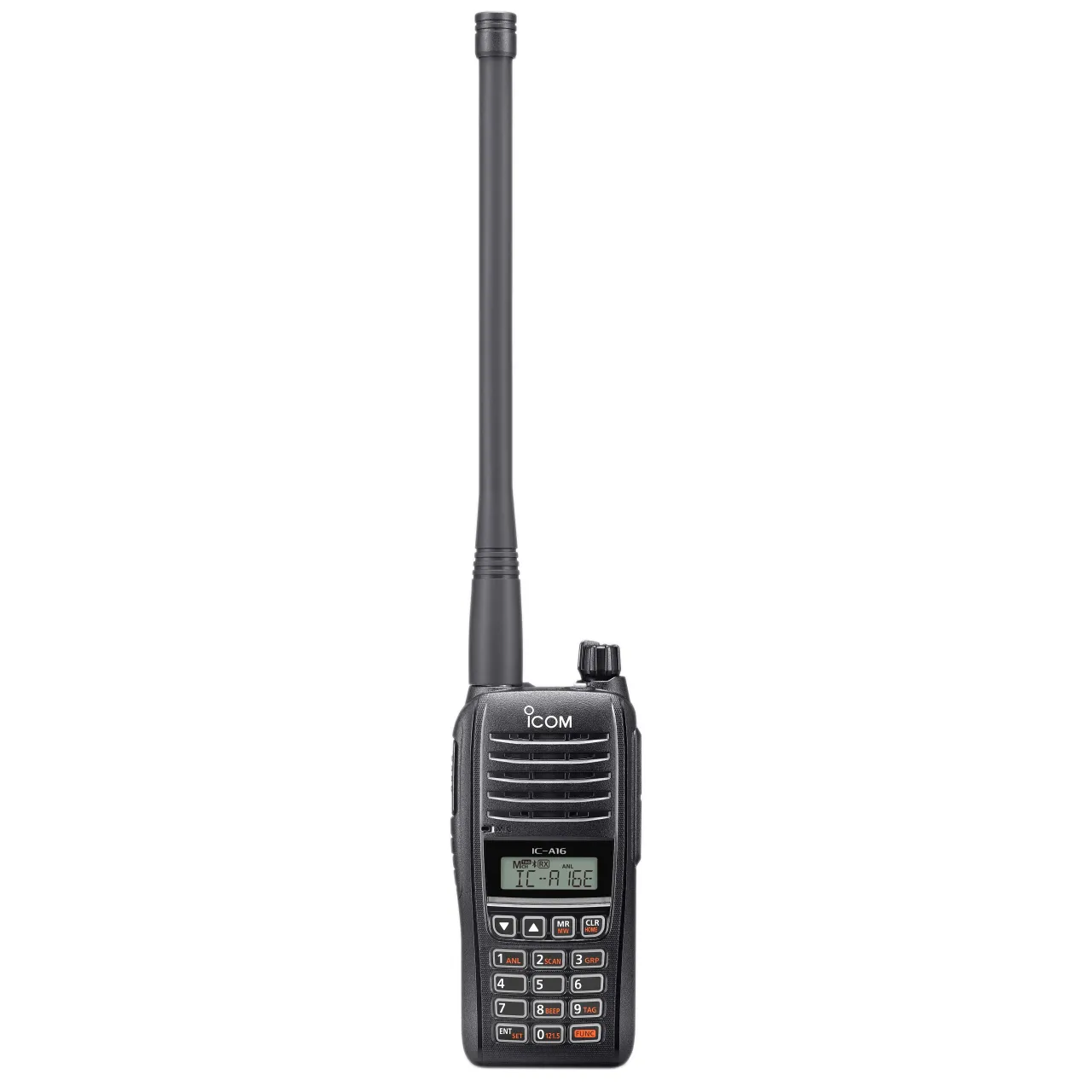

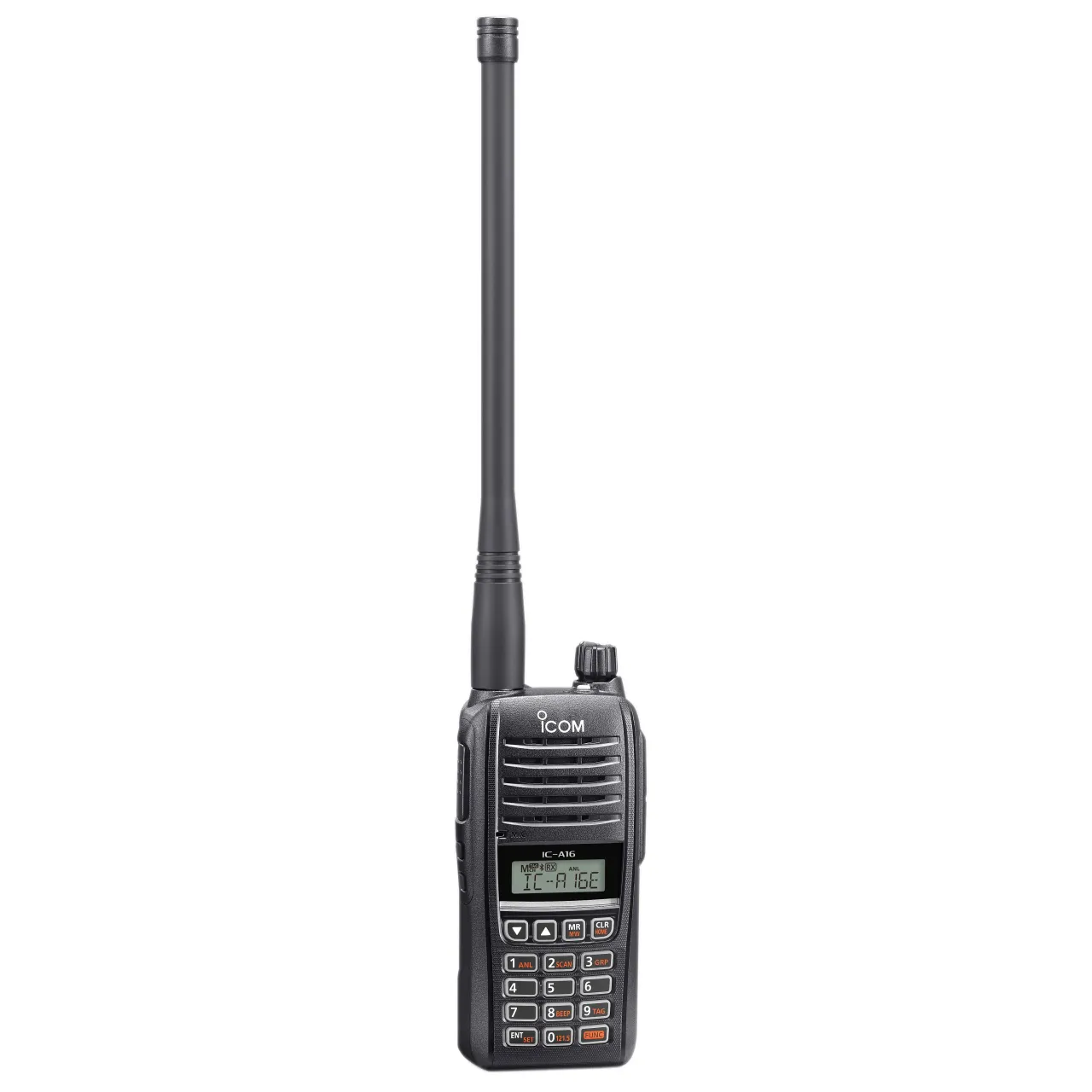

IC-A16E

Handheld VHF airband transceiver 118-136MHz, 6W PEP, LCD display, keyboard, 200 channels, 8,33/25kHz spacing channel compatibility, IP67/54 protection, MIL-810G durability. Unlockable for Export use only. Supplied with battery, charger, belt clip and VHF antenna. Bluetooth function available depending on the version

  • IC-A16E Handhelds - ICOM

    Cliquez pour agrandir

  • IC-A16E Handhelds - ICOM

    Cliquez pour agrandir

  • IC-A16E Handhelds - ICOM

    Cliquez pour agrandir

Les + Produits

  • 8.33 kHz and 25 kHz channel spacing
  • LCD and key blacklight for night time operation
  • Compact (52.2 x 111.8 x 34.1 mm) and lightful (257g with BP-280)
  • High output power: 6W (PEP) / 1.8 W (carrier)
  • Clear communications: 1500 mW loud audio
  • Large capacity battery pack provides 17 hours of long battery life (with BP-280)
  • Built-in Bluetooth for hands-free operation (for #12 or #32 only)
  • Side-tone, ANL and VOX functions

  • DAS MAX. : 0.370 W / kg
Demande d'informations
Image Accessoires - ICOM

BC-213

Rapid base charger, AC adapter supplied

Image Accessoires - ICOM

BP-280

Image Accessoires - ICOM

FA-B02AR

VHF Flexible Antenna 118-136MHz type BNC

Image Accessoires - ICOM

MB-133

Adapters

Image 0 - ICOM

AD-130

Charger adapter for BC-119N et BC-214N

Image 1 - ICOM

OPC-2401

Headset adapter, LWP connector

Image 2 - ICOM

VS-RAPT4335MM

Antennas

Image 0 - ICOM

AH-AVIA2

VHR Air band Antenna 1/4 wave for mobile not for mounting on aeronef

Image 1 - ICOM

AH-AVIA2MG

VHF-UHF mobile antenna 108-906MHz 30-100W 1/4 wave FME-type with magnetic mount. Made of stainless steel

Image 2 - ICOM

AH-ML2XR

Multiband whip antenna 80-175MHz tunable and tiltable, 1/4 wave, stainless steel whip, FME connection, supplied without cable

Image 3 - ICOM

AH-ML2ZR

Multiband whip antenna 80-175MHz tunable Stainless steel Z-mount with ball-joint and wing screw whip-fastening system, 1/4 wave, FME connection, supplied without cable

Image 4 - ICOM

FA-B02AR

VHF Flexible Antenna 118-136MHz type BNC

Chargers and alimentations

Image 0 - ICOM

BC-123SE

AC charger adapter 12V 1A

Image 1 - ICOM

BC-157S

AC adapter 12V 7A

Image 2 - ICOM

BC-213

Rapid base charger, AC adapter supplied

Image 3 - ICOM

BC-214N

6-way base charger supplied with AC adapter and charger adapter

Image 4 - ICOM

BC-242

12V 1 AH AC Adapter. Supplied with USA/EUR/UK/AUS plugs

Batteries

Image 0 - ICOM

BP-280

Cords

Image 0 - ICOM

CP-23L

Image 1 - ICOM

OPC-478UD

Cloning cable for LS-type connector radios. Can be used alone without an intermediary cable

Image 2 - ICOM

OPC-515L

12V DC power cable with angled

Image 3 - ICOM

OPC-FL6U46T

Coiled cable for Flex headset

Image 4 - ICOM

OPC-FLX2-S46T

Coiled cable for Flex headset and ICOM handheld aviation radios

Image 5 - ICOM

OPC-RAFLEX2GA

Headsets and earphones

Image 0 - ICOM

EP-RA3235L2

D-shape listen only with 3,5mm plug

Image 1 - ICOM

EP-SR30310

Bluetooth mini headset including charging cable

Image 2 - ICOM

HS-GLA10I2W

Headband headset, noise cancelling, flexible microphone, built-in PTT, direct connexion on aviation handset, black

Image 3 - ICOM

HS-GLIA10GA

Headband headset, noise cancelling, flexible microphone, built-in PTT, double-jack general aviation connector, black. Must be used with an optional headset adaptor

Image 4 - ICOM

HS-PEACB-FLEX

Helmet attachment noise attenuating headset, Bluetooth multipoint connectivity and wired Flex, 6-pin connector for flex cable connection, VOX and PTL function, IP68 microphone. Supplied with 2 AA non-rechargeable batteries, yellow color

Image 5 - ICOM

HS-PEACSNB-FLEX

Neckband noise attenuating headset, Bluetooth multipoint connectivity and wired Flex, 6-pin connector for flex cable connection, VOX and PTL function, IP68 microphone. Supplied with 2 AA non-rechargeable batteries, yellow color

Image 6 - ICOM

HS-PEACSTB-FLEX

Headband noise attenuating headset, Bluetooth multipoint connectivity and wired Flex, 6-pin connector for flex cable connection, VOX and PTL function, IP68 microphone. Supplied with 2 AA non-rechargeable batteries, yellow color

Image 7 - ICOM

HS-PEPASN-FLEX

Neckband headset high attenuation, built-in PTT, 6-pin external jack for flexcable connection, IP68 microphone, yellow color

Image 8 - ICOM

HS-PEPAST-FLEX

Headband headset high attenuation, built-in PTT, 6-pin external jack for flexcable connection, IP68 microphone, yellow color

Image 9 - ICOM

HS-RAPH100AB

Microphones

Image 0 - ICOM

HM-240

Speaker microphone, LWP connector

Image 1 - ICOM

HM-SR30313

Remote Speaker Microphone, Bluetooth RSM, white version, supplied with USB charging cable

Covers, fasteners and cradles

Image 0 - ICOM

LC-BF3022NC

Nylon carrying case with metal clip

Image 1 - ICOM

LC-ERFXX

Carrying case with pivot

Image 2 - ICOM

LC-OTUNICUIR

Harness with universal leather case, with swivel clip

Image 3 - ICOM

LC-OTUNICUIR-CP

Universal leather case, with swivel clip and belt loop with press stud

Image 4 - ICOM

LC-OTUNICUIR-XL

Universal leather case, with XL harness, swivel clip and belt loop with press stud

Image 5 - ICOM

LC-OTUNINYL

Harness with universal nylon case, with swivel clip

Image 6 - ICOM

MB-130

Image 7 - ICOM

MB-133

Image 8 - ICOM

MB-96F

Leather belt hanger

Image 9 - ICOM

MB-96FL

Large leather Belt Hanger

Image 10 - ICOM

MB-96N

Leather belt hanger with pivot

[fr] doc-antennes-aviation-fr.pdf
[fr] doc-A16E-fr.pdf
[fr] doc-casques-aviation-fr.pdf
[en] doc-IC-A16E-en.pdf
[fr] doc-IC_A16E-fr.pdf
[fr] not-IC-A16E Notice d'utilisation de base-fr.pdf - Basic manuel Multi language
[fr] not-IC-A16E_Multi-fr.pdf
[en] not-IC-A16_A16E_BM_ENG_6-en.pdf

Nous informons notre aimable clientèle que les notices d’utilisation sont fournies gracieusement avec les équipements achetés au sein de notre réseau agréé.
En revanche, pour tout produit qui n’a pas été acquis auprès de nos distributeurs, toute demande de notice est susceptible de faire l’objet d’une facturation dont le montant varie en fonction de l’équipement concerné.

[fr] press-A16E-fr.pdf
